NF5688M6-产品配置
|
配置 |

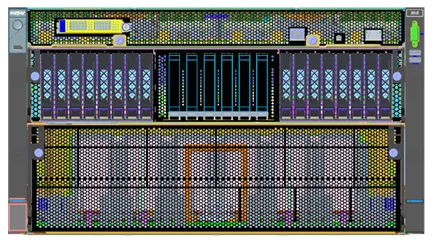

8盘配置 |

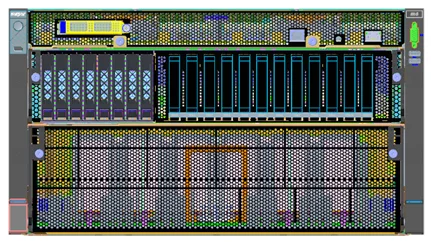

16盘配置 |
|
CPU |
2*Intel® IceLake CPU |
2*Intel® IceLake CPU |
|
内存 |
32x DDR4 RDIMM/LRDIMM |
32x DDR4 RDIMM/LRDIMM |
|
Raid卡 |
0 or 1 |
1 or 2 |
|
SSD |
8 NVMe |
16 SATA/SAS |
|
M.2 SSD |
2 |
2 |
|
PCIe卡 |
100G/200G IB卡*8, PCIe x16 * 2, PCIex 8 * 2 预留 |
100G/200G IB卡*4, PCIe x16 * 2(Raid) |
|
OCP3.0 |
1 |
1 |
|
电源 |
6 * 3000w PSU 3+3冗余 |
6 * 3000w PSU 3+3冗余 |
|
机箱尺寸 |
6U,850mm |
6U,850mm |
|
操作环温 |
5 - 35oC |
5 - 35oC |
