Hard Drive Replacement - Action Plan - SA5456M5
1.Part Info
|
Catalog |
Details |
|
PN#/FRU# |
WUH721816ALE6L4 |
|
DESC |
WD_16KT_WUH721816ALE6L4_7.2K |
|
QTY |
2 |
2.Basic Info
|
Item |
Details |
|
Downtime Required？ |
NO |
|
Estimated Hours |
1H |
|
Tools Required-Hardware |
Screwdriver tool kit |
|
Tools Required-Software |
No |
|
Failed Part Catalog |
HDD |
|
Failed Part Location |
sdz/sdr |
3.Action Plan:
|
1. Confirm that the equipment serial number is for this maintenance equipment.

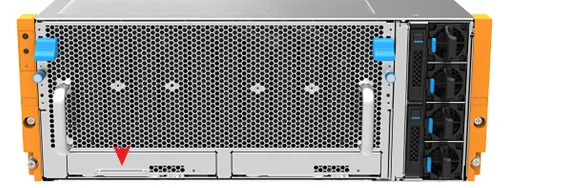

2.Loosen the two blue screws, press the two blue handles, and pull out the hard drive cabinet
3.Observe the hard drive indicator light
When the indicator light is blue or red, proceed to the next step

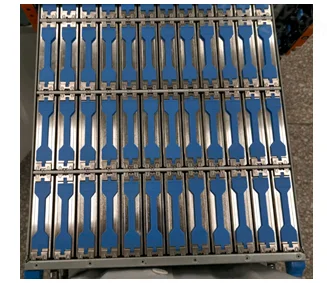

4.Lift up the faulty hard drive and remove it

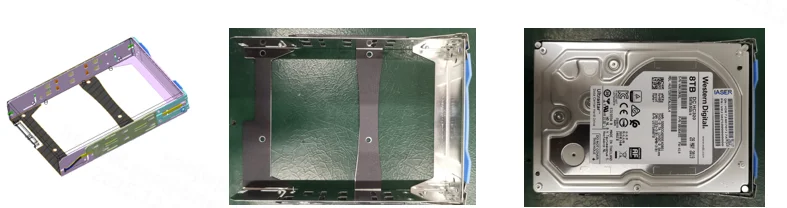

5.Install spare hard drive the rack of the faulty hard drive needs to be transferred to the spare hard drive
6.After replacing all faulty hard drives, push the cabinet back into the chassis and tighten the screws
|
4. Verification :
|
Observe the hard drive indicator light for any abnormalities and ask the customer to check
|
5. Reference Link/Doc:
|
N/A |

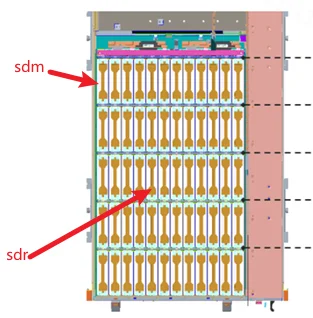

6. Failure Part Location:
|
|
